Introduction of fly ash

Fly ash is fine ash collected from the flue gas after coal combustion. Fly ash is the main solid waste discharged from coal-fired power plants. With the development of the power industry, the amount of fly ash discharged from coal-fired power plants has increased year by year, making it one of the industrial wastes with a large displacement in China. If a large amount of fly ash is not treated, it will generate dust and pollute the atmosphere. If it is discharged into the water system, the river will be blocked. The toxic chemicals in it can also cause harm to humans and organisms.

Fly ash is a volcanic ash-like mixed material formed by burning pulverized coal at high temperature. The chemical composition of fly ash is similar to clay. It is mainly used to produce fly ash cement, fly ash bricks, fly ash silicate blocks, fly ash aerated concrete and other building materials. It can also be used as an agricultural fertilizer and soil amendment.

Bundor Valve provides you with a safe and reliable complete set of coal ash conveying system solutions.

Fly ash separation system

This system is a single-point feeding closed-circuit pneumatic sorting system with negative pressure.The fly ash from the original ash storage enters the negative pressure pipeline of the sorting system through the variable frequency electric air lock.The solid two phase flow of syngas mixed with the negative pressure airflow inside the pipe enters the top of the coarse ash storage.

The selected coarse ash through the lower part of the electric air lock into the coarse ash library;Under the action of the negative pressure airflow, the fine ash passes through the separator and enters the efficient cyclone separator on the top of the fine ash library.The exhaust containing trace dust is returned to the original ash conveying pipe through the main return air duct of the wear-resisting high-pressure centrifugal fan, forming a closed cycle.A small part of the excess exhaust gas is discharged into the fine ash warehouse through the exhaust pipe and purified by the dust collector on the top of the warehouse.

General Configuration List
No.NamePressureConfigurationUnit
1 Wafer handle butterfly valve PN16 Body: DI, Seat: EPDM
Disc: 304
set
2 Wafer pneumatic butterfly valve PN16 Body: DI, Seat: EPDM
Disc: 304
set
3 Wafer worm gear butterfly valve PN16 Body: DI, Seal: EPDM
Disc: 304
set
4 Wafer check valve PN16 Body: DI, Seal: EPDM set
5 Rubber joint PN16 Flange: WCB, Ball: EPDM set
6 Cast steel ball valve PN16 Cast steel body, stainless steel body set
7 Knife gate valve PN16 Body: WCB, Disc: 304 set

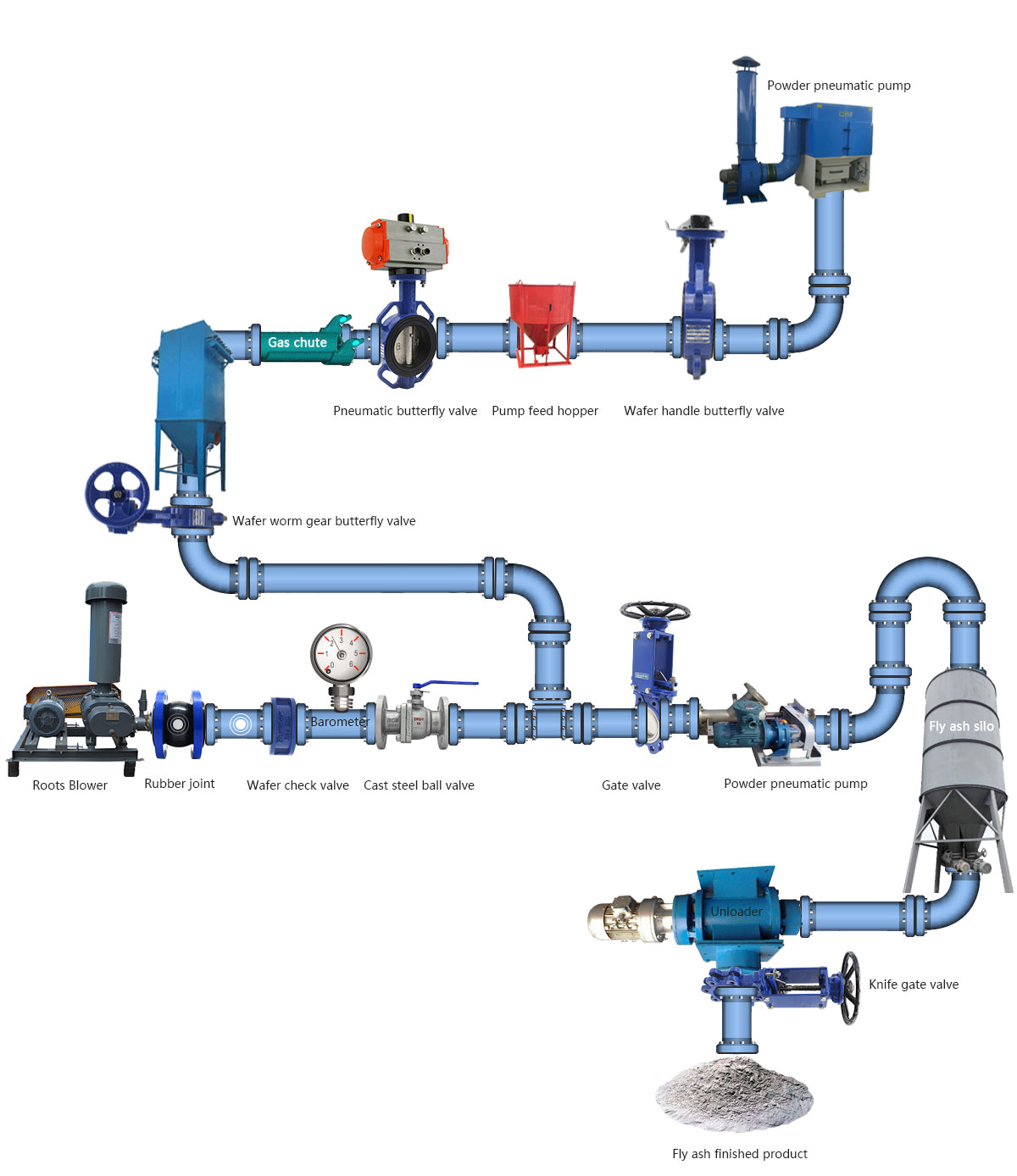

Valve distribution map used in coal ash conveying system
