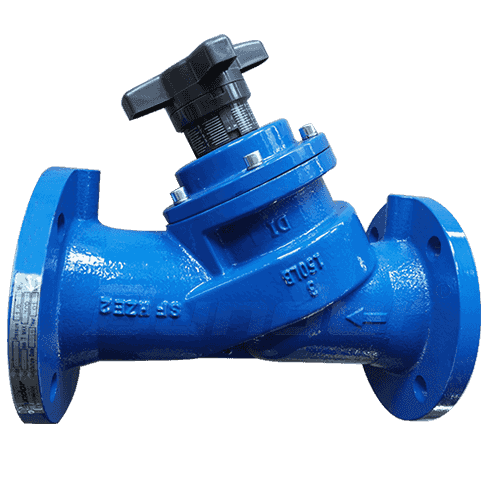

Digital lock balance valve1
Digital lock balance valve2
Digital lock balance valve1 Digital lock balance valve2

Digital lock balance valve

【Size Range】: DN20-DN600

【Pressure】: PN16

【Body Materials】: Ductile Iron

【Stem Materials】: 304

ADVANTAGES

Features:
Applicable medium:Water, oil, and other liquids.
Suitable temperature:0 degrees Celsius to 80 degrees Celsius
Application field: Municipal construction, air conditioning system, water supply and drainage, water treatment.

Product advantages:

1.The wall thickness and dimension of valves should be in strict accordance with GB / t29735-2013.

2.With advanced technology diaphragm, theoretical error is zero, and it can bear pressure difference of 0.8MPa.

3.Ensure that each product is tested in strict accordance with the standard before leaving the factory, including pressure test, simulation test bench to simulate user use, etc. Ensure 100% qualified delivery.

4.Quality inspection of each link from blank to finished product packaging.

5.PE heat shrinkable plastic packaging
The surface of the valve body adopts the electrostatic powder thermal spraying technology, which is more environmentally friendly and weather resistant, and ensures that the valve body does not change color for 36 months.

PARAMETER INFORMATION

1
Name Body Valve core Stem Cover Handwheel
Material DI DI  304 DI DI

 Nominal size L PN16
DN NPS(inch) ΦD ΦK Φd
20 3/4" 150 105 75 56
25 1" 160 115 85 65
32 1 1/4" 180 140 100 76
40 1  1/2'' 200 150 110 84
50 2'' 230 165 125 99
65 2  1/2'' 290 185 145 118
80 3'' 310 200 160 132
100 4'' 350 220 180 156
125 5'' 400 250 210 184
150 6'' 480 285 240 211
200 8'' 600 340 295 266
250 10'' 730 405 355 319
300 12'' 850 460 410 370
350 14'' 980 520 470 429
400 16'' 1100 580 525 480
450 18'' 1200 640 585 548
500 20'' 1250 715 650 609
600 24'' 1450 840 770 720
