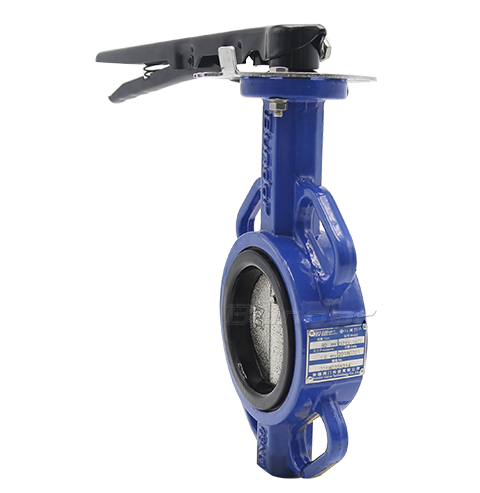

Wafer Type Butterfly Valve

【Size Range】: 3''/DN80

【Pressure】: 5K/10K/150LB

【Body Materials】: Ductile iron

【Seat Materials】: EPDM

【Disc Materials】: Ductile Iron

【Stem Materials】: stainless steel

ADVANTAGES

Features:

Applicable medium:fresh water, sewage, sea water, weak acid and alkali, air, steam, etc.
Suitable temperature:according to seat material
Application field: municipal construction, water treatment, power, water supply and drainage, water conservancy projects.

Product advantages:

1.Meet drinking water standards
Provides rubber seats and epoxy spray to meet potable water standards.

2.Standard EPDM rubber seat with reliable leak free performance
Seat rubber USES EPDM rubber in accordance with standard. Seat elasticity and tension are more stable and reliable.

3.The product has an independent identity to ensure traceability
Each Bundor product has its own QR code mark, unique identification number, to ensure product traceability.

4.Valve body valve plate is made of QT450-10 material
Valve body valve plate is made of qt450-10 material with spheroidization rate above grade 3, tensile strength of 450Mpa and elongation of >10%.

5.Special spraying valve body, 36 months without discoloring
The surface of the valve body adopts the electrostatic powder thermal spraying technology, which is more environmentally friendly and weather resistant, and ensures that the valve body does not change color for 36 months.

6.Intelligent test and pressure test to ensure product quality
Each product is pressure tested by the Bundor intelligent testing equipment, and the inspection report is automatically generated. Every data and report is kept for 5 years to ensure the delivery qualified rate.

7.Solid body valve body, more stable
Valve body is solid body, same caliber weight is heavier than other manufacturers.

8.Each product is packed separately with heat shrinkable film, ash proof and moisture proof.
Each German product is packed with heat-shrinkable film, and has a built-in drying agent to isolate air dust, facilitate storage and avoid corrosion caused by damp.

PARAMETER INFORMATION

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  DI EPDM  DI 45#Steel NBR Iron
DN NPS A D1 D2 L1 L2 L3 L4 B Top Flange
DN50 2" 45 73.3 92.3 75 129 24 220 9 F05
DN65 2.5" 49 86 107 82 136 24 220 9 F05
DN80 3" 49 100.9 122 99 153 24 220 9 F05
DN100 4" 55 132 153 110 167 24 250 11 F07
DN125 5" 58.5 156 179 125 193 24 250 14 F07
DN150 6" 59 185.4 208.4 145 209 24 302 14 F07
DN200 8" 64.5 235.2 262.3 170 251 30 360 17 F10
